High Brightness Ultra Wide Stretched Displays LCD Digital Signage 7" - 59"

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD07SDN101-ITD59SDN101

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

Housing Material : Steel Chassis

Inputs : VGA, DVI, HDMI

Power Source : External Power Supply with Universal/Auto-Sensing, DC 24V

Key Control : Power on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left)

Accessories : Power Supply, VGA/DVI/HDMI cable

Operating Temperature : -10℃-55℃ (-20℃-70℃ optional)

Contact Now

stretched bar type lcd display digital signage from 7" to 59"



ITD’s line of ultra wide stretched bar LCD displays provide super wide aspect ratios as wide as 16:1 and in sizes ranging from 6 inches to 60 inches. Large ultra wide displays are ideal for displaying panoramic content and catching an audience's attention in advertising and digital signage applications, while smaller sizes are commonly used in appliances, kiosks, mobile devices, flight simulators, and gaming machines. High brightness is native on all models, and is an option for making these displays suitable for outdoor applications where sunlight readability is necessary. The most popular application for bar-style LCD is in public transportation displays, including route displays onboard trains, streetcars, and busses, advertising displays in airports, bus stations, and train stations, and in several cases they are mounted on top of taxi cabs as mobile ad space.



Specifications:



Model ITD07SDN101 ITD14SDN102 ITD14SDN101 ITD18SDN101 ITD19SDN101
Resized Inch 7.8” 14.4” 14.9” 18.9” 19.1”
Original Size N/A Cut By 15’’ N/A Cut By 21.5’’ Cut By 21.5’’
Active Area 184.8(H)x 300(V) 337.9(W) × 140(H) 360.94(H)x 109.98(V) 476.6(H) x 49.6(V) 476.6(H) x 88(V)
Contrast Ratio 1000:1 500:1 500:1 1000:1 1000:1
Resolution 800 x 300 1280 x 530 1280 x 390 1920 x 200 1920 x 354
Brightness 500nits 500nits 500nits 500nits 500nits
Viewing Angles 85/85/85/85 80/80/70/70 80/80/70/70 89/89/89/89 89/89/89/89
Backlight LED LED LED LED LED
Unit Dimension 197 x 96.2mm 421 x 170mm 367.9 x 171mm 506.6 x 79.7mm 506.6 x 119mm
Model ITD25SDN101 ITD28SDN101 ITD28SDN102 ITD35SDN101 ITD37SDN101
Resized Inch 25.3” 28” 28.5” 35.3” 37”
Original Size Cut By 27’’ Cut By 32’’ Cut By 32’’ Cut By 40’’ Cut By 40’’
Active Area 576(H) x 162(V) 698.4(H) x 131.8(V) 698.4(H) x 196.4(V) 895(H) x 150(V) 895(H) x 320(V)
Contrast Ratio 1000:1 1200:1 1200:1 5000:1 5000:1
Resolution 1920 x 540 1920 x 368 1920 x 540 1920 x 325 1920 x 693
Brightness 500nits 500nits 500nits 500nits 500nits
Viewing Angles 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Backlight LED LED LED LED LED
Unit Dimension 606 x 193mm 728 x 161.9mm 728 x 226.5mm 925 x 181mm 925 x 351mm
Model ITD37SDN102 ITD38SDN101 ITD43SDN101 ITD49SDN101 ITD59SDN101
Resized Inch 37.2” 38” 43” 49.5” 59”
Original Size Cut By 41.6’’ Cut By 41.6’’ Cut By 49’’ Cut By 55’’ Cut By 65’’
Active Area 930(H)x 174.4(V) 930(H) x 263.6(V) 1073.8(H) x 201.3(V) 1209.6(H) x 340.2(V) 1461(W) × 473.7(H)
Contrast Ratio 2500:1 2500:1 1300:1 1400:1 1400:1
Resolution 1920 x 360 1920 x 540 1920 x 360 1920 x 540 1920 x 596
Brightness 500nits 500nits 500nits 500nits 500nits
Viewing Angles 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89 89/89/89/89
Backlight LED LED LED LED LED
Unit Dimension 960 x 204.5mm 960 x 293.7mm 1103.8 x 231.4mm 1239.6 x 386.2mm 1461 x 473.7mm
SPECIFICATION
Inputs VGA, DVI, HDMI
Convenient Features Plug & Play
Power Source External Power Supply with Universal/Auto-Sensing, DC 24V
Power Consumption Operation/Power Saving TBA
Touch Panel Optional
Key Control Power on/off with LED, Menu/Remote Control, Select, Adjustment(Right/Left)
Operating Temperature -10℃-55℃ (-20℃-70℃ optional)
Storage Temperature -20℃-70℃
Relatively Operating Humidity 10% - 90% (non condensing)
Relatively Storage Humidity 10% - 90%
Accessories Power Supply, VGA/DVI/HDMI cable
Order Information Stretched LCD Monitor with tempered glass/ITD**SDG101/02
Stretched LCD with Single Media Player Integrated /ITD**SDG1A1/A2
Stretched LCD with Android RK3188 Media Player Integrated /ITD**SDG1E1/E2






Product Image:

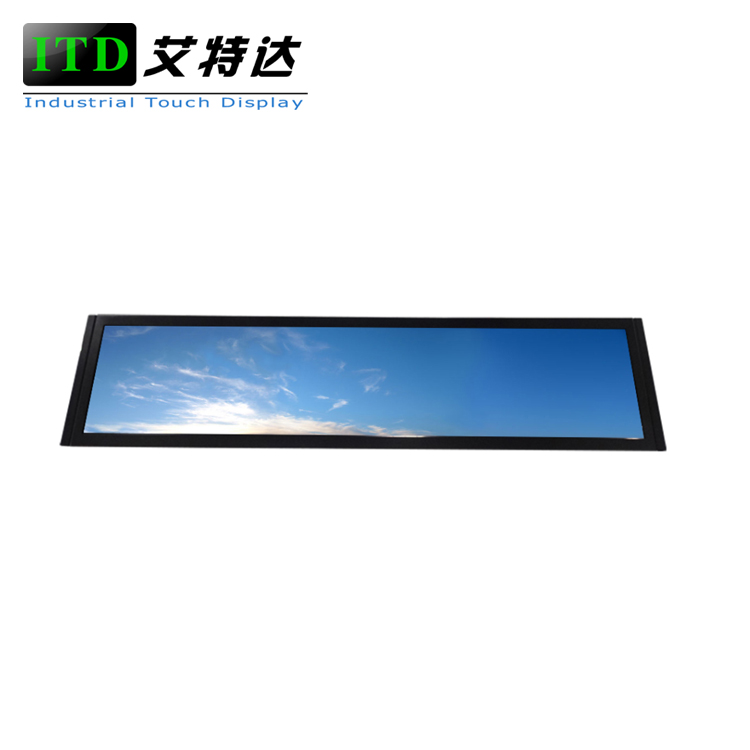

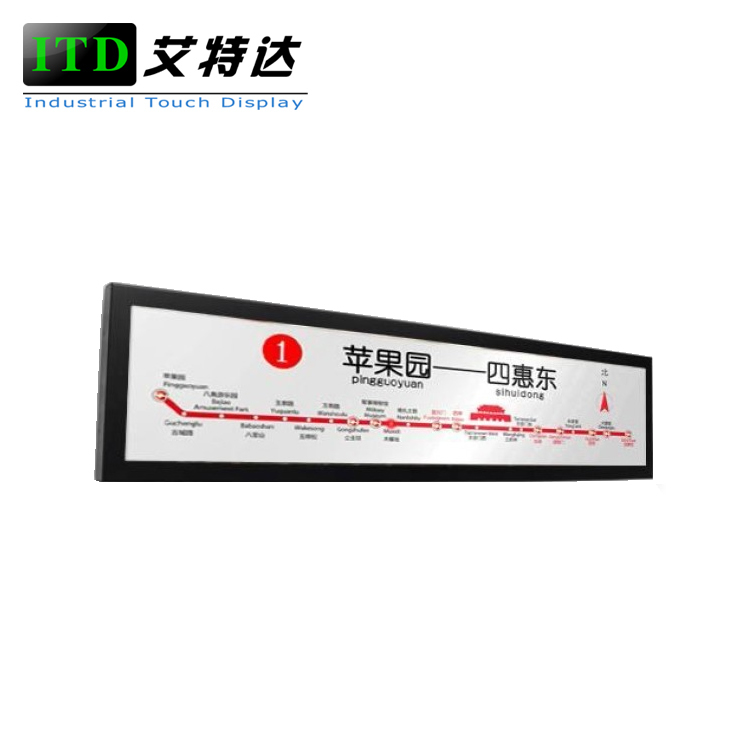

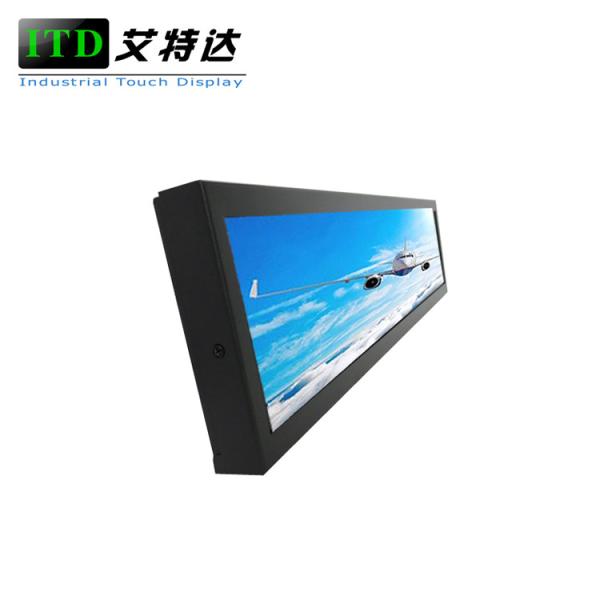

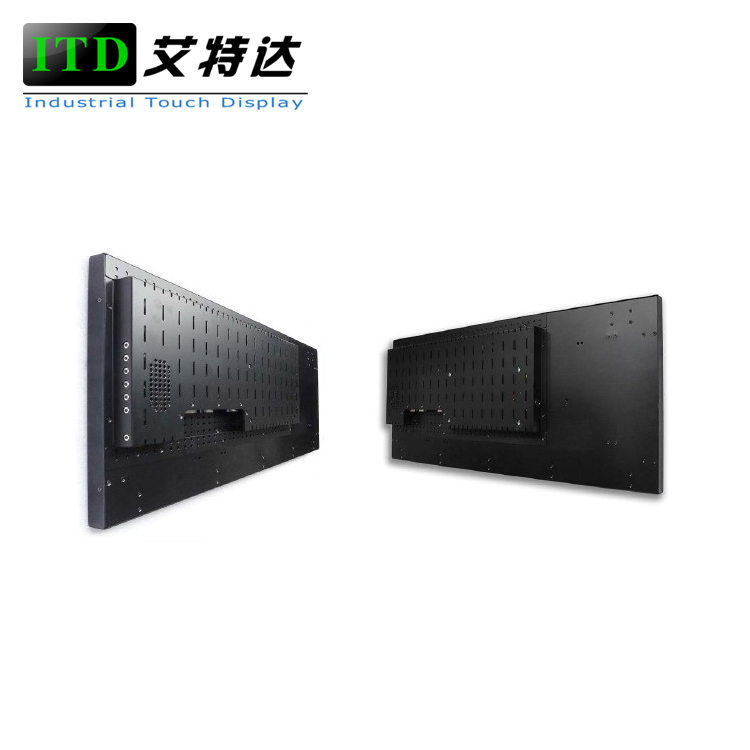

High Brightness Ultra Wide Stretched Displays LCD Digital Signage 7" - 59"
High Brightness Ultra Wide Stretched Displays LCD Digital Signage 7" - 59"







High Brightness Ultra Wide Stretched Displays LCD Digital Signage 7" - 59"High Brightness Ultra Wide Stretched Displays LCD Digital Signage 7" - 59"



High Brightness Ultra Wide Stretched Displays LCD Digital Signage 7" - 59"
