Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel

Name: Bluetooth Touch Panel PC 101 Inch Android 71 Octa Core RK3399 PCAP AIO Panel
Brand: ITD/OEM
Price: 1 USD

Buy cheap Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel product

Brand Name : ITD/OEM

Model Number : ITD101PPCT5KE2

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Packaging Details : Foam,gift box,master carton,wooden case,pallet

Model Name : ITD101PPCT5KE2

IP Rating : IP65 Front Panel

Touch Technology : Projected Capacitive Touch with 10 touch points

Aspect Ratio : 16:10

Widescreen : Yes

Brightness : 300cd/m2

Contrast : 800:1

Viewing Angles : 89/89/89/89

MTBF : 50000H

CPU : ARM Octa-Core RK3399,Main CPU frequency:2.0GHz;

Price : TBA

Contact Now

10.1inch Android 7.1 Octa-Core RK3399 PCAP Touch AIO Panel Tablet PC with bluetooth ideally for retail

ITD 17” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Eight-Core Cortex-A72 Processor RK3399 2.0GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 17” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.

Specifications:

PARAMETERS

Panel	Cell Type/Glass Surface	TFT
	Size/ Aspect Ratio	10.1”/16:10
	Active Area/ Pixel Pitch	216.81(W) × 135.50(H)mm /0.113 × 0.113mm
	Native Resolution/ Colors	1920 x 1200/16.7M
	Brightness/ Contrast	300cd/㎡/800:1
	Response Time	14ms
	Viewing Angle(Typical)	80/80/80/80
	Light Source	LED Backlight with 50000Hours’Lifetime

System	CPU: ARM Eight-Core RK3399,Main CPU frequency:2.0GHz; GPU: Mali-T860 GPU, Supports AFBC(ARM Frame Buffer Compression) SDRAM: 4G Flash: 32G OS: Android 7.1 Bluetooth: Bluetooth 4.1 Video Decoder: 4K VP9 and 4K 10bits H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output	1 × HDMI 4 × USB 2.0 Host, 1 × USB 3.0 Host 1 × TF Card Support 1~64GB 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E) 1 × DC 12V 2.0
Operating Temperature	-10~60℃
Storage Temperature	-20~70℃
Relative Humidity	10%~90%
Order Information	10.1”Zero-Bezel Android Panel PC with Tempered Glass/ITD101PPCG1KE2

FEATURES

Easy-to-clean, true flat front surface without bezel
Card Reader like NFC, RFID, etc integrated
Ten independent touch points with anti-vandalism & scratch
Responds to a light touch to activate response
Eliminates dust and debris build-up at the edge and corners of the display
Provides improved power efficiency and reduced consumption
Ruggedized levels of NEMA 4, IP65 ratings for front panel
All steel and aluminum frame construction designed for public and industrial environments
CE, FCC, RoHS Compliance

OPTIONAL

•WIFI, Bluetooth
•Camera, Microphone built-in
•VESA brackets, desktop stand

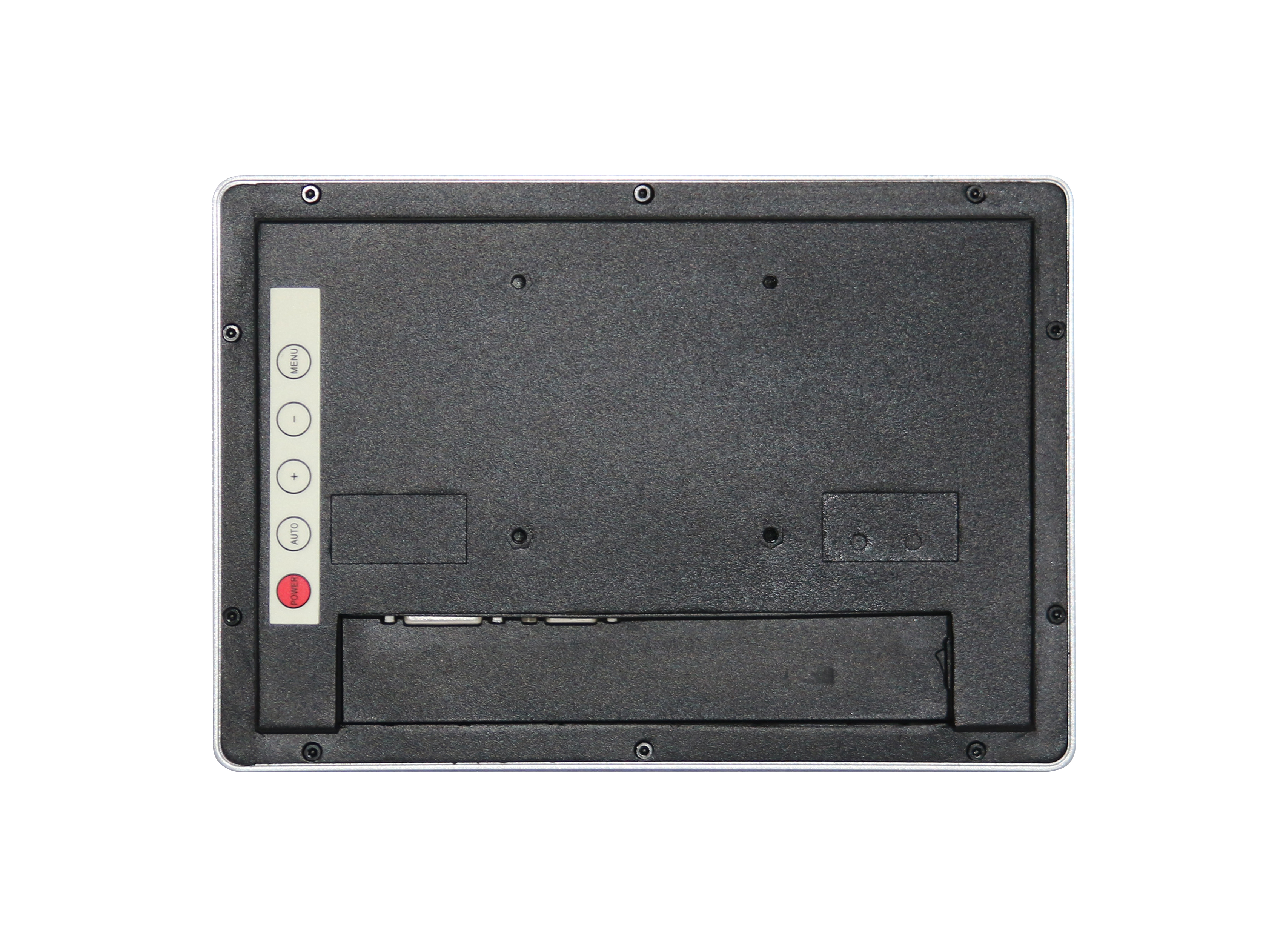

Product Display:

Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel

Applications:

Bluetooth Touch Panel PC 10.1 Inch Android 7.1 Octa Core RK3399 PCAP AIO Panel
