Multi Touch Industrial Panel PC 10.1" Android Widescreen With NFC RFID Reader

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD101PPCT5KE1

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 unit per month

Packaging Details : Foam,gift box,master carton,wooden case,pallet

Model Name : ITD101PPCT5KE1

IP Rating : IP65 Front Panel

Touch Technology : Projected Capacitive Touch with 10 touch points

Resolution : 1920x1200

CPU : ARM Quad-Core RK3368 Cortex-A53

GPU : PowerVR G6110 GPU

SD Ram : 2G; 4G Optional

Flash : 8G: 16G/32G/64G/128G Optional

Price : TBA

Contact Now

Widescreen 10.1" Android multi Touch Panel PC with NFC RFID reader

ITD 10.1” multi-touch screen HMI comfort panel PC is fully-integrated‚ multi capacitive touch screen combines high-performance ARM Quad-Core Cortex-A53 Processor RK3368 1.5GHz, and Projected Capacitive Touch (PCT or PCAP)Technology in industrial-grade LCD flat panels, combined with a NFC or RFID reader with sleek and flat front surface industrial design. This PCT technology is a capacitance system that delivers sensitive and accurate 10 multi-touch interactive experiences. The ITD 10.1” multi-touch HMI comfort panel PC specifically suited for various smart access control systems.

Specifications:





Panel Cell Type/Glass Surface TFT
Size 10.1”
Aspect Ratio 16:10
Active Area 216.81(W) × 135.50(H)mm
Pixel Pitch 0.113 × 0.113mm
Native Resolution 1920 x 1200
Colors 16.7M
Brightness 300cd/㎡
Contrast 800:1
Response Time 14ms
Viewing Angle(Typical) 160/160
Light Source LED Backlight with 30000Hours’Lifetime

SPECIFICATION

System

CPU: ARM Quad-Core RK3368 Cortex-A53,Main CPU frequency:1.5GHz;

GPU: PowerVR G6110 GPU

SDRAM: 2G; 4G Optional

Flash: 8G: 16G/32G/64G/128G Optional

OS: Android 5.1/6.0

Bluetooth: Optional

Video Decoder: 4K VP9/H265/H264 video decoders, up to 60fps

1080P other video decoders (VC-1, MPEG-1/2/4, VP8)

Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc

Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM

/H264/VP8/MVC

Photo Format: Supports JPG/BMP/GIF/TIFF/PNG
Input / Output

1 × HDMI; 2 × USB Max. 6× USB; 1 × USB OTG

4 × COM; 1 × TF Card Support 8~128GB;

1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E);

1 × DC 12V 2.0; 3G/4G Optional
Operating Temperature -10~60℃
Storage Temperature -20~70℃
Operating Humidity 10%~90% (Non Condensing)
Order Information 10.1” PCAP Touch Android PC with NFC Reader/ITD101PPCT5KE1-NFC
10.1” PCAP Touch Android PC with RFID Reader/ITD101PPCT5KE1-RFID
10.1” Non Touch Android PC with NFC Reader/ITD101PPCG1KE1-NFC
10.1” Non Touch Android PC with RFID Reader/ITD101PPCG1KE1-RFID

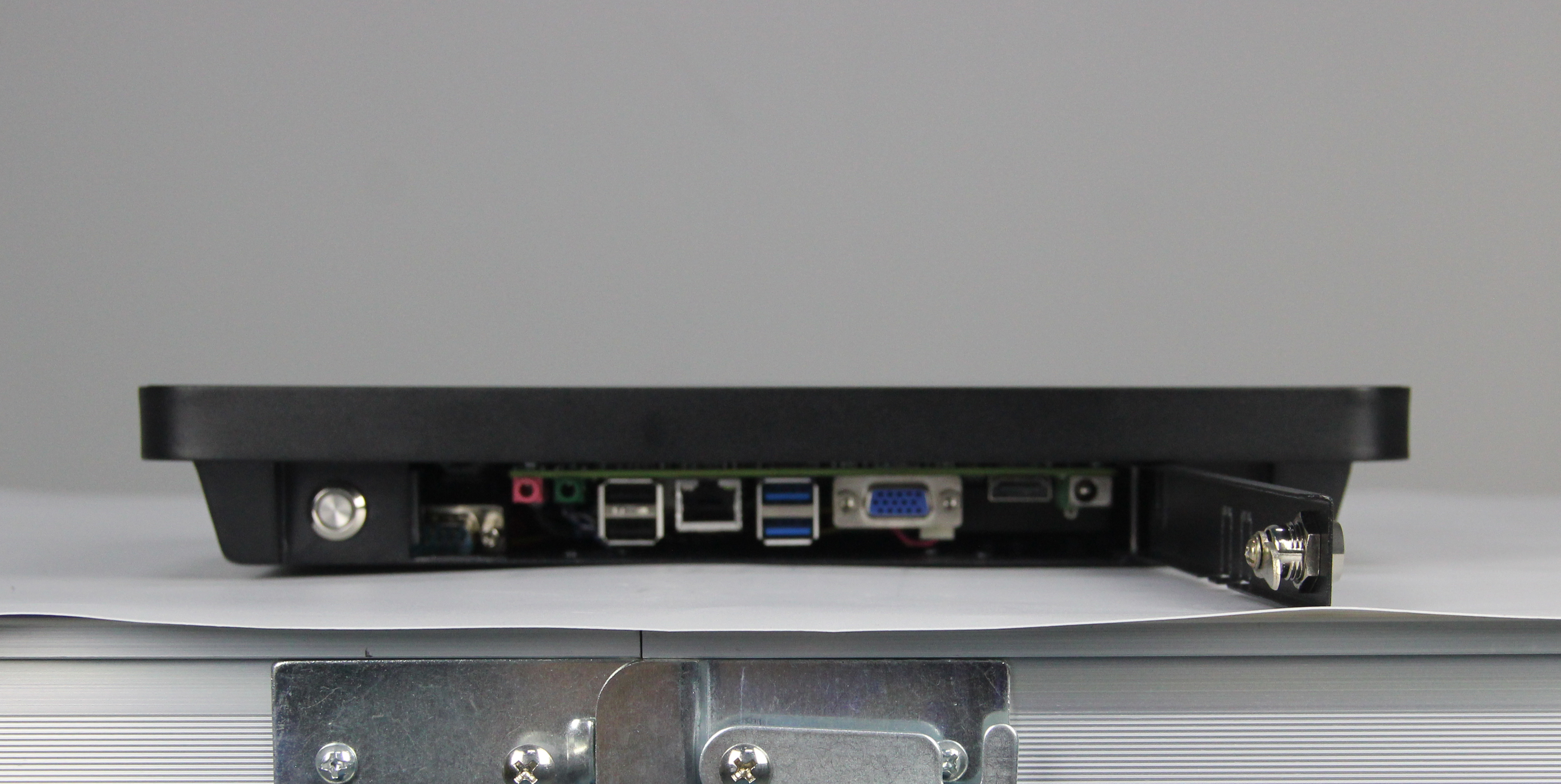

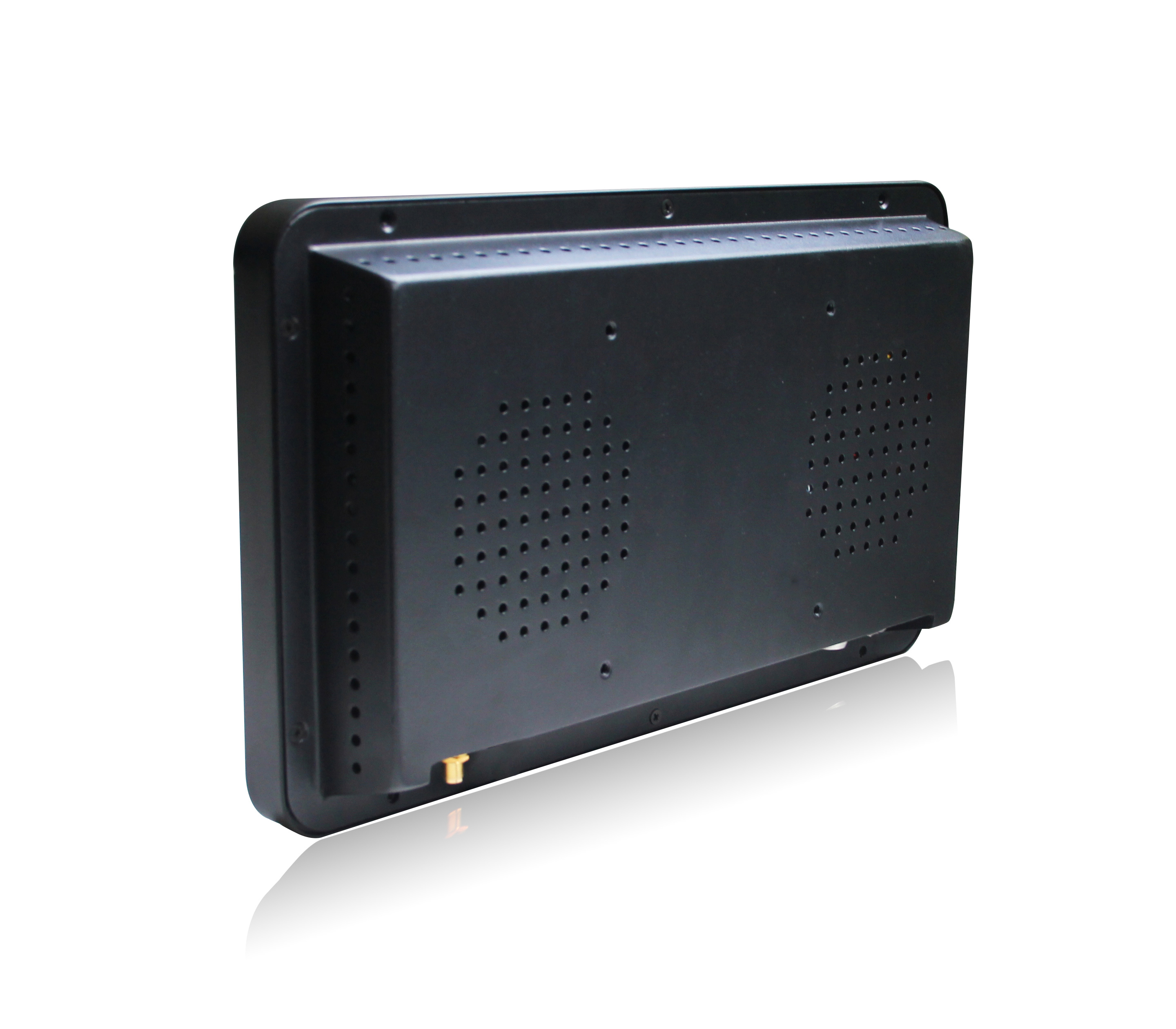

Product Display:


Multi Touch Industrial Panel PC 10.1" Android Widescreen With NFC RFID ReaderMulti Touch Industrial Panel PC 10.1" Android Widescreen With NFC RFID ReaderMulti Touch Industrial Panel PC 10.1" Android Widescreen With NFC RFID Reader


Factory:

Multi Touch Industrial Panel PC 10.1" Android Widescreen With NFC RFID Reader
