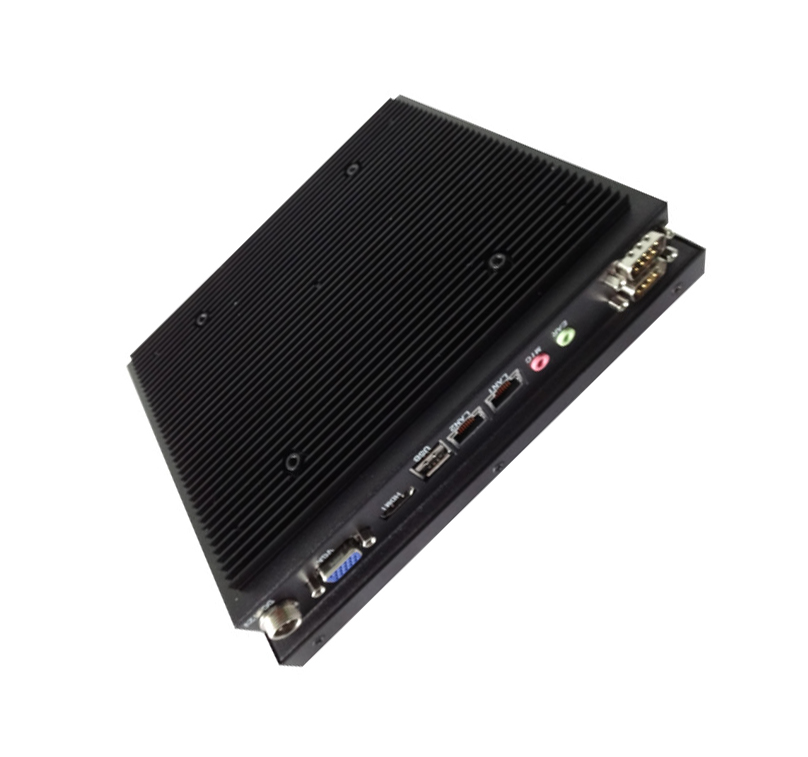

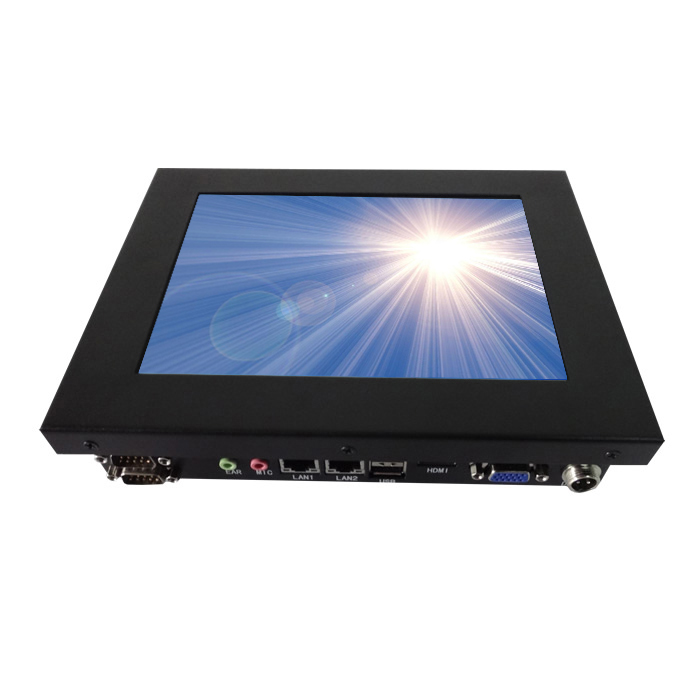

6.5 Inch Waterproof Panel PC Industrial IP65 Capacitive Touch Screen For HMI
ITD Waterproof panel PC rugged marine grade high brightness LCDs are designed for use in marine environments. These devices are ready to be panel-mounted into a console. Its front bezel provides maximum protection from water and other elements as it meets various NEMA and IP rating standards. It delivers high performance computing power with its Intel processors.
BENEFITES of Industrial IP65 Waterproof Panel PC
-6.5" Very Bright Active Matrix Sunlight Readable TFT Display; 1500 nits (cd/m2)
-High-Luminance Solid-State LED-enhanced Backlighting
-Optical Bonding of Touch Screen Directly to the Front Surface of the LCD Optional
-Intel Celeron 2 GHz Quad Core Processor
-4GB, Max.8G System Memory
-500GB HDD or 126GB SSD, Bigger Capacity Optional
-NEMA 4 (IP65) - Black Powder Coat Aluminum Front Bezel
-Resistive Touch Screen Standard (PCAP, IR Touch Optional)
-Energy Efficient, Low Power Consumption
-High Environmental Performance and Reliability
-SVGA (800 x 600) Resolution, Optional XGA (1024 x 768)
-Wide Operational Temperature Range, -10°C to +60°C
| Chassis High Brightness Panel PC |
| Model Name | ITD06PPCG1HBL** |
| IP Rating | IP65 Front Panel Optional |
| PC Systems Options |
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 |
| Chipset: N/A | Chipset: Intel® NM10 Express | Chipset: Intel® HD Graphics, Support 1080p |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) |
| 1×LAN | 1×LAN | 1×LAN |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe |
| LCD Panel |
| Screen Diagonal (Inch) | 6.5” |
| Display Active Screen Size (cm) | 132.48(H)×99.36(V) |
| Aspect Ratio | 4:3 |
| Physical Resolution | 640×480 |
| Maximum Resolution Supported | 1920×1080 |
| Colors | 262K |
| Brightness (cd/m²) | 1000(1500 Optional) |
| Contrast Ratio | 600:1 |
| View Angels | 80/80/70/70 |
| Backlight/Backlight Lifetime | LED Backlight with 50000 Hours’ Lifetime |
| Touch Panel |
| Touch Options | Resistive, IR, PCAP, SAW, |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
| Operation |
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
| Power |
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 28W |
| Order Information |
| 6.5”1000nits Chassis Panel PC with Resistive Touch, J1900 | ITD06PPCT1HBLJ1 |
| 6.5”1000nits Chassis Panel PC with PCAP Touch, J1900 | ITD06PPCT5HBLJ1 |
| 6.5”1000nits Chassis Panel PC with IR Touch, J1900 | ITD06PPCT2HBLJ1 |
| 6.5”1000nits Chassis Panel PC with Tempered Glass, J1900 | ITD06PPCG1HBLJ1 |
| 6.5”1000nits Chassis Panel PC with Resistive Touch, i5 | ITD06PPCT1HBLI5 |
| 6.5”1000nits Chassis Panel PC with PCAP Touch, i5 | ITD06PPCT5HBLI5 |
| 6.5”1000nits Chassis Panel PC with IR Touch, i5 | ITD06PPCT2HBLJ1 |
| 6.5”1000nits Chassis Panel PC with Tempered Glass, i5 | ITD06PPCG1HBLI5 |
