Flat Surace Panel Mount Touch Screen PC 21.5 Inch 1920X1080 Resolution

Name: Flat Surace Panel Mount Touch Screen PC 215 Inch 1920X1080 Resolution
Brand: ITD/OEM
Price: 1 USD

Buy cheap Flat Surace Panel Mount Touch Screen PC 21.5 Inch 1920X1080 Resolution product

Brand Name : ITD/OEM

Model Number : ITD21PPCG1X**

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

CPU : Intel J1900/i3/i5/i7/Android

Active are : 476.64(H)×268.11(V) mm

24/7/365 Use : Supported

Touchscreen : Resistive, PCAP

Power input : DC 12V

Resolution : 1920X1080

View Angels : 85/85/80/80

IP rating : IP65 on the front panel

Contact Now

IP65 front true flat surace 21.5" panel mount touch PC

FEATURES

- Supports Intel Celeron CPU up to 2.0 GHz

- Low power consumption and economical solution

- Compact size and high performance

- High speed Giga LAN

- On-board IDE interface

- High precision touchscreen

- Industry level of durability against dust and powerful jetting IP65 / NEMA 4

Specifications:

Flat Bezel Industrial Panel PC
Model Name		ITD21PPCG1X**
IP Rating		IP65 Front Panel
PC Systems Options
ARM Android Based RK3288(RK3368 optional)	X86 Windows Based		X86 Windows Based
CPU: Quad-Core Cortex-A17 1.8GHz	CPU: Intel® Celeron J1900		CPU: Intel Core i3/i5/i7
Chipset: N/A	Chipset: Intel® HD Graphics, Support 1080p		Chipset: Intel® HD Graphics, Support 1080p
Memory: 1G/2G	Memory: 2GB(Max. 8GB)		Memory: 2GB(Max. 8GB)
HDD/SSD: 8G	HDD/SSD:500G/64G		HDD/SSD:500G/64G
1×HDMI	1×VGA, 1×HDMI		1×VGA, 1×HDMI
1×USB 2.0	2×USB 2.0, 2×USB3.0		2×USB 2.0, 2×USB3.0
1×mini-SD slot	1×COM(RS232/422/485)		1×COM(RS232/422/485)
1×LAN	1×LAN		1×LAN
1×Audio Out	1×Audio Out, 1×MIC In		1×Audio Out, 1×MIC In
Expansion: SSD	Expansion: USB, COM, Mini-PCIe		Expansion: USB, COM, Mini-PCIe
LCD Panel
Screen Diagonal (Inch)		21.5”
Display Active Screen Size (cm)		476.64(H)×268.11(V)
Aspect Ratio		16:9
Physical Resolution		1920×1080
Maximum Resolution Supported		1920×1080
Colors		16.7M
Brightness (cd/m²)		250
Contrast Ratio		1000:1
View Angels		85/85/80/80
Backlight/Backlight Lifetime		LED Backlight with 50000Hours'Lifetime
Touch Panel
Touch Options		Resistive, IR, PCAP, SAW
Touch Drivers		Windows, Linux, Android, Mac, Raspberry Pi
Operation
Operating Temperature Range		-10~60°C (-20~70°C Optional)
Humidity Range (RH)		10-90%
24/7/365 Use		Supported
Power
Power Indicator		Green LED
Power Input		DC 12V
Power Consumption		36.25W
Order Information
21.5”Panel Mount Panel PC with Resistive Touch, J1900		ITD21PPCT1XJ1
21.5”Panel Mount Panel PC with PCAP Touch, J1900		ITD21PPCT5XJ1
21.5”Panel Mount Panel PC with Tempered Glass, J1900		ITD21PPCG1XJ1
21.5”Panel Mount Panel PC with Resistive Touch, i5		ITD21PPCT1XI5
21.5”Panel Mount Panel PC with PCAP Touch, i5		ITD21PPCT5XI5
21.5”Panel Mount Panel PC with Tempered Glass, i5		ITD21PPCG1XI5

The ITD all-in-one Embedded Panel PCs with x86 open platform and preinstalled Windows Embedded operating systems enable fast and economical deployment of improved HMI systems for operator control and monitoring applications. The Celeron J1900 processor was produced by Intel as a high-powered chip that would work in a wide range of thermal conditions, making it a highly desirable solution for industrial control applications.

Product Display:

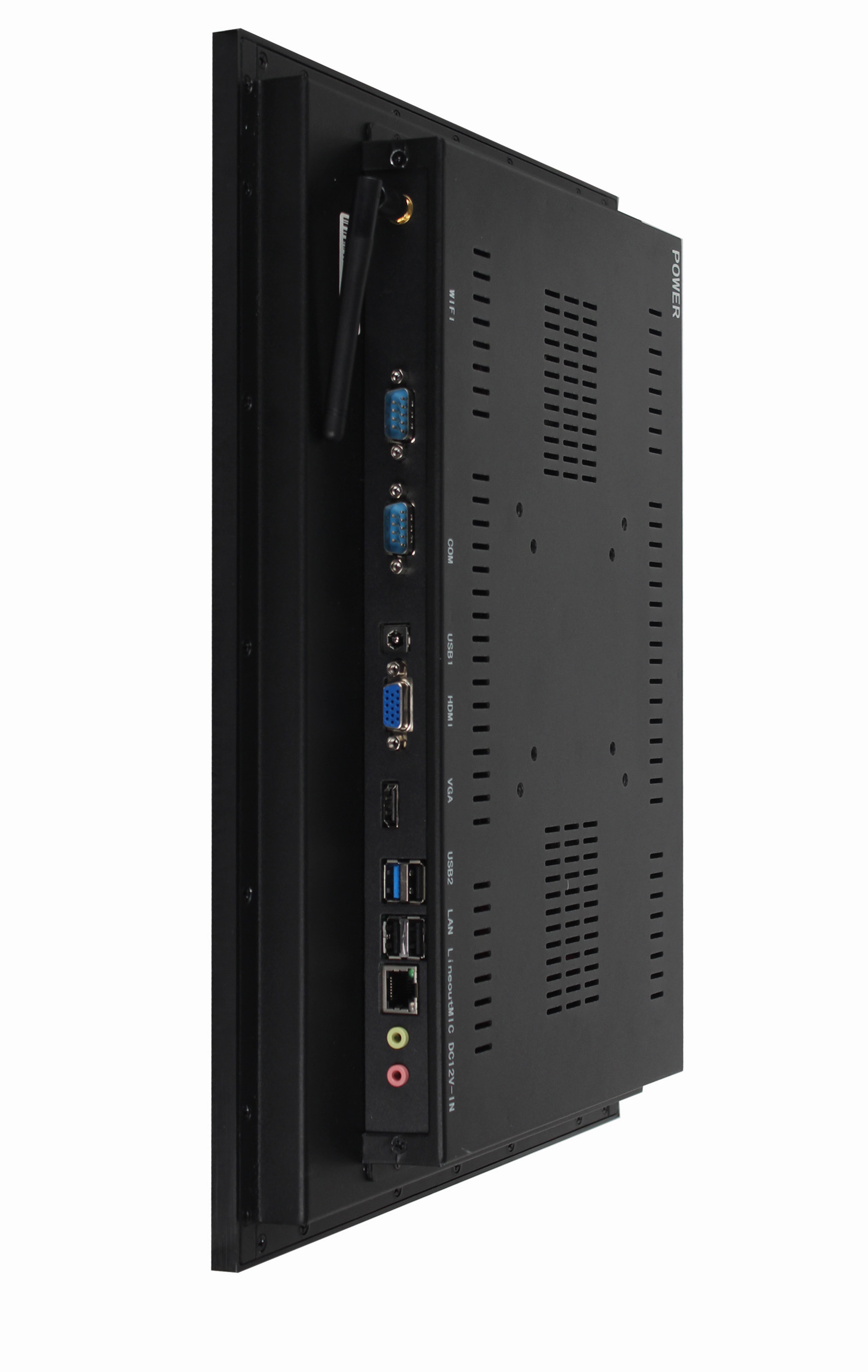

Flat Surace Panel Mount Touch Screen PC 21.5 Inch 1920X1080 Resolution

APPLICATION
