High Performance Open Frame LCD Monitor 10.4" 1920×1080 Resolution

Name: High Performance Open Frame LCD Monitor 104quot 19201080 Resolution
Brand: ITD/OEM
Price: 1 USD

Buy cheap High Performance Open Frame LCD Monitor 10.4" 1920×1080 Resolution product

Brand Name : ITD/OEM

Model Number : ITD10OFN1M1

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 5-15 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm

Housing Material : Steel Chassis

Color : Black or Silver

Housing Type : Open Frame Mount, VESA Mounting

MTBF : 50000Hours

Operating Temperature : -10~60℃(-20~70℃ optional)

Operating Humidity : 10%-90% (Non Condensing)

24/7/365 Use : Supported

Resolution : 800*600

Brightness : 300nits

Contact Now

10.4" open frame LCD touch monitor with resistive touch,IR touch, PCAP touch optional

ITD industrial open frame LCD monitor displays are fully-integrated, commercially off-the-shelf units that combine high-performance touch technology in industrial-grade LCD flat panels, with sleek and flush mount open frame front surface industrial design. ITD industrial monitors provide reliability, durability, and expected long product life.

BENEFITES

- Long lasting product cycle-enclosure. Future generation panels phased-in without external changes

- Display Only, Resistive (4 or 5 wire), SAW, IR and Capacitive touch options

- Available in standard (4:3) and wide (16:9)

- High quality panel with 150° x 140° viewing angle. 170° x 170° IPS panel optional

- Mounting includes side mounting, rear-mount and VESA mount (front mount optional)

- VGA ,DVI and HDMI inputs with USB for touch and external AC/DC power.

Open Frame LCD Monitor
Model Name	ITD10OFN1M1
IP Rating	N/A
LCD Panel
Screen Diagonal (Inch/cm)	10.4”
Display Active Screen Size (mm)	211.2(H) ×158.4(V)
Aspect Ratio	4:3
Physical Resolution	800×600
Maximum Resolution Supported	1920×1080
Colors	16.7M
Brightness (cd/m²)	300nits
Contrast Ratio	500:1
View Angels	80/80/70/70
Backlight/Backlight Lifetime	LED backlight with 50000 hours’lifetime
Touch Panel
Touch Options	Resistive, IR, SAW, PCAP
Touch Drivers	Windows, Linux, Android, Mac, Raspberry Pi
Input / Output
Video Input	1 × VGA
	1 × DVI-I
	1 × HDMI
Audio	1 × PC-Audio
Touch Connector	1 × USB
Power Connector	1 × DC2.0
Operation
Operating Temperature Range	-10~60°C (-20~70°C Optional)
Humidity Range (RH)	10-90%
24/7/365 Use	Supported
Power
Power Indicator	Green LED
Power Input	DC 12V
Power Consumption	10W
Order Information
10.4”Open Frame LCD Monitor with Resistive Touch	ITD10OFT1M1

APPLICATION

High Performance Open Frame LCD Monitor 10.4" 1920×1080 Resolution

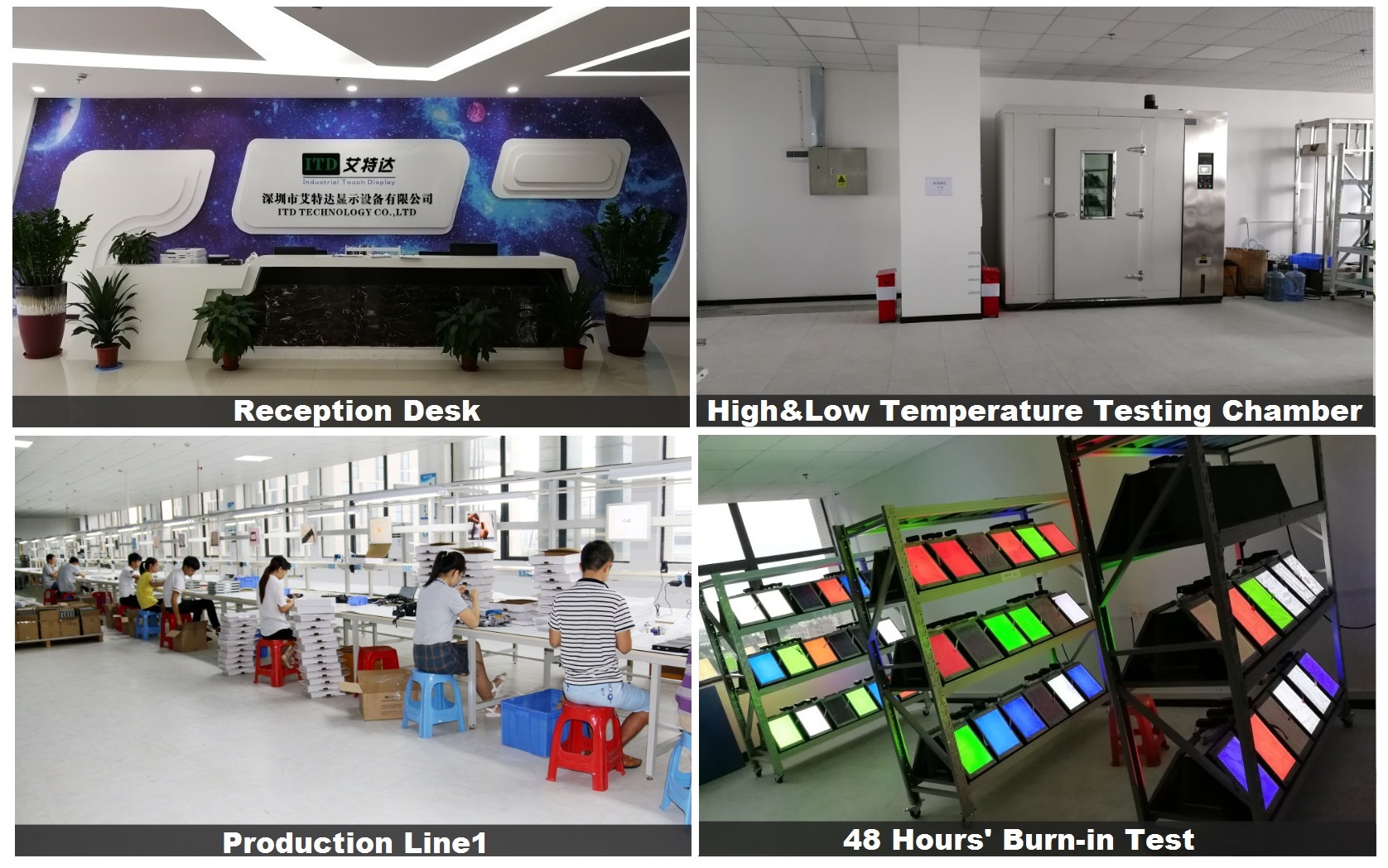

OUR FACTORY

Product Tags:

open frame lcd panel

open frame touch screen monitor

High Performance Open Frame LCD Monitor 10.4" 1920×1080 Resolution Images
