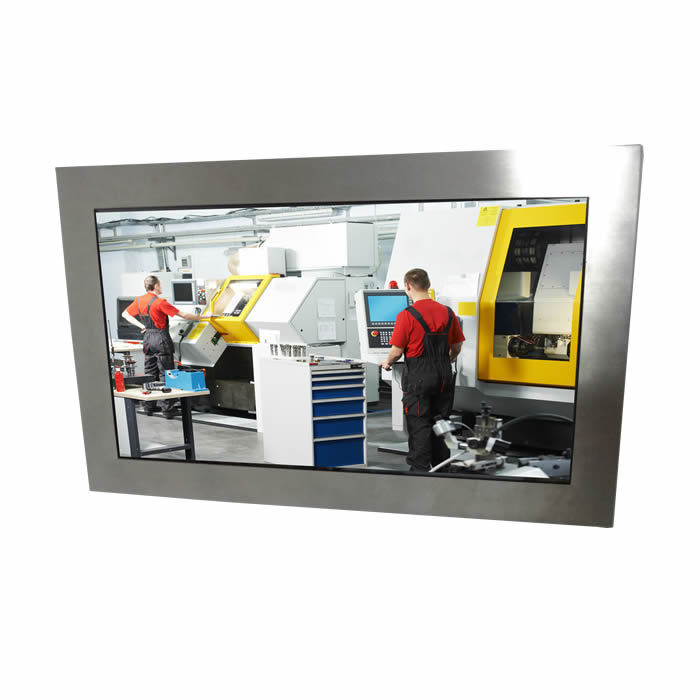

21.5 inch rugged full IP65 panel PC waterproof dustproof
ITD full IP66 waterproof Industrial panel PCs are recognizable by their special protective functions and their corresponding IP rating codes “IP65” or “IP66” or “IP67” and are cased in sturdy and slim protective housings made of high-strength stainless steel or aluminum profiles. They have been constructed to provide complete protection from any form of contact with water, dust, dirt, etc.
FEATURES
- Open platform enables Machine-to-Machine applications
- Brushed stainless steel enclosure, sealed I/O from particles, water, and corrosive agents
- Full IP65/66 and sealed with anti-corrosive rubber to providing 360 degree protection
- Windows-based with integrated CPU, RAM, storage, USB, RS232, and LAN ports
- Flexible, reliable, and ruggedized for open platform HMI/SCADA
- Technical support for drivers, hardware, troubleshooting procedures and general system issues
Specifications
| Full IP65/IP66 Touchscreen Panel PC |
| Model Name | ITD21PPCG1IP** |
| IP Rating | IP65/IP66(IP67 optional) |
| PC Systems Options |
| ARM Android Based RK3288(RK3368 optional) | X86 Windows Based | X86 Windows Based |
| CPU: Quad-Core Cortex-A17 1.8GHz | CPU: Intel® Celeron J1900 | CPU: Intel Core i3/i5/i7 |
| Chipset: N/A | Chipset: Intel® NM10 Express | Chipset: Intel® HD Graphics, Support 1080p |
| Memory: 1G/2G | Memory: 2GB(Max. 8GB) | Memory: 2GB(Max. 8GB) |
| HDD/SSD: 8G | HDD/SSD:500G/64G | HDD/SSD:500G/64G |
| 1×HDMI | 1×VGA, 1×HDMI | 1×VGA, 1×HDMI |
| 1×USB 2.0 | 2×USB 2.0, 2×USB3.0 | 2×USB 2.0, 2×USB3.0 |
| 1×mini-SD slot | 1×COM(RS232/422/485) | 1×COM(RS232/422/485) |
| 1×LAN | 1×LAN | 1×LAN |
| 1×Audio Out | 1×Audio Out, 1×MIC In | 1×Audio Out, 1×MIC In |
| Expansion: SSD | Expansion: USB, COM, Mini-PCIe | Expansion: USB, COM, Mini-PCIe |
| Default IP65 Connectors: 1×USB 2.0, 1×LAN, 1×DC 2.0 |
| LCD Panel |
| Screen Diagonal (Inch/cm) | 21.5” |
| Display Active Screen Size (mm) | 476.64(H)*268.11(V)mm |
| Aspect Ratio | 16:9 |
| Physical Resolution | 1920x1080 |
| Maximum Resolution Supported | 1920x1080 |
| Colors | 16.7M |
| Brightness (cd/m²) | 250nits |
| Contrast Ratio | 1000:1 |
| View Angels | 80/85/85/85 |
| Backlight/Backlight Lifetime | LED backlight with 50000 hours’lifetime |
| Touch Panel |
| Touch Options | Resistive, PCAP |
| Touch Drivers | Windows, Linux, Android, Mac, Raspberry Pi |
| Operation |
| Operating Temperature Range | -10~60°C (-20~70°C Optional) |
| Humidity Range (RH) | 10-90% |
| 24/7/365 Use | Supported |
| Power |
| Power Indicator | Green LED |
| Power Input | DC 12V |
| Power Consumption | 49W |
| Order Information |
| 21.5”Full IP65/IP66 Panel PC with Resistive Touch, J1900 | ITD21PPCT1IPJ1 |
| 21.5” Full IP65/IP66 PC with PCAP Touch, J1900 | ITD21PPCT5IPJ1 |
| 21.5” Full IP65/IP66 Panel PC with Tempered Glass, J1900 | ITD21PPCG1IPJ1 |
| 21.5” Full IP65/IP66 Panel PC with Resistive Touch, i3 | ITD21PPCT1IPI3 |
| 21.5” Full IP65/IP66 Panel PC with PCAP Touch, i3 | ITD21PPCT5IPI3 |
| 21.5” Full IP65/IP66 Panel PC with Tempered Glass, i3 | ITD21PPCG1IPI3 |

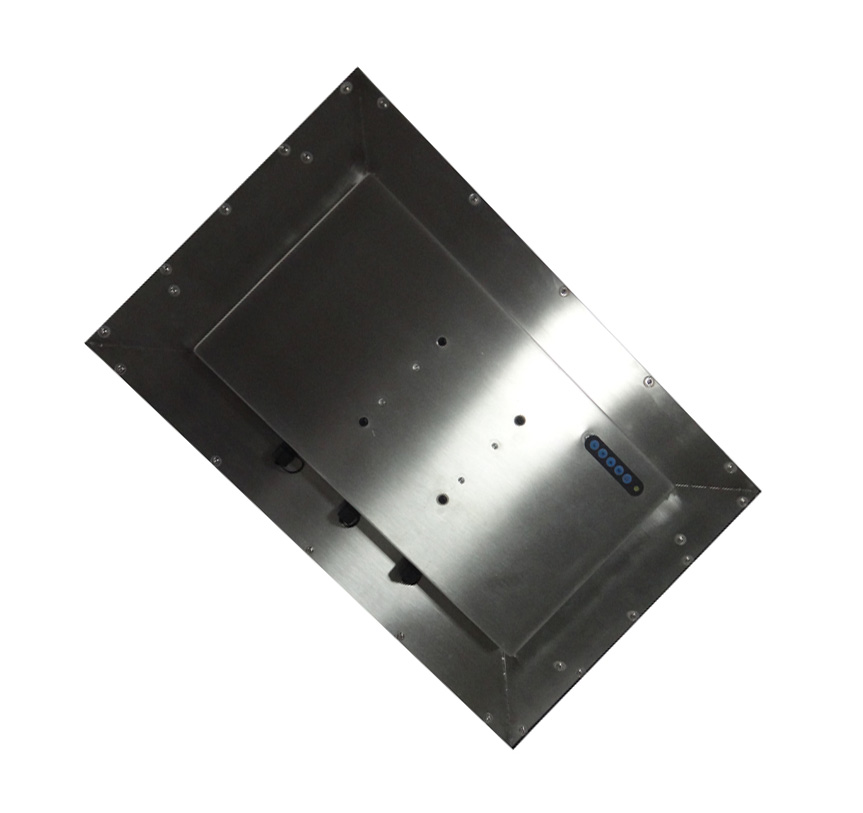

Product Display
