IP69K SUS316L All In One PC Dustproof Resistive PCAP Touch Panel PC

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD10PPCG1IP**

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 1000PCS/Month

Delivery Time : 15-20 Business Days

Packaging Details : 1pcs/CTN, Safe, Firm, suitable for international shipping

View Angels : 70/70/60/70

IP rating : IP66/IP67

Touch options : Resistive, PCAP

Resolution : 800x600 or 1024x768

System : Intel J1900/i3/i5/i7,Android

Serial Ports : 1x COM (Optional)

USB Ports : 1 x USB 2.0(Waterproof Connector and Cable)

Power Port : 1 x 12V DC Jack(Waterproof Connector and Cable)

LAN : 1 x 10/100/1000Mbps Ethernet(Waterproof Connector and Cable)

Contact Now

full IP66 IP67 316L stainless steel waterproof dustproof IP69K touch panel PC all in one PC


The rugged design of ITD industrial multi touch panel PC computers enable them to withstand and endure

extreme environmental conditions such as vibration, oil, and water; without faltering or malfunctioning.

Thanks to the special mounting frame, these panel PCs are easily installed into machinery, control panels

and switching cabinets. These units are ideal for applications including process visualization, machine and

operating data acquisition, order selection terminals, or even employee time and attendance tracking.


FEATURES

- Intel 6th/7th Generation Core i3/i5/i7 CPU

- Sunlight Readable LCD Screen Option

- Up to 16GB with DDR4 2133MHz memory

- Fanless Die Cast Aluminum Housing with IP65 Protected Front

- Wide Range 9~36VDC Power Input Optional




Specifications:



PanelCell Type/Glass SurfaceTFT
Size/ Aspect Ratio10.1”/16:10
Active Area/ Pixel Pitch216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm
Native Resolution/ Colors1280 x 800/16.7M
Brightness/ Contrast350cd/㎡/800:1
Response Time/ Viewing Angle(Typical)25ms/85/85/85/85
Light SourceLED Backlight with 50000Hours’Lifetime

SYSTEM

ItemAndroid SolutionX86 Solution 1X86 Solution 2
CPUARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional)Intel® Celeron J1900 2.0GHzIntel® Core i3/i5/i7
ChipsetRK3288Intel Bay Trail SoCIntel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage8GB: 16GB/32GB/64GB Optional1 x SATA, 1 x mSATA, Default to 64GB SSD1 x SATA, 1 x mSATA, Default to 64GB SSD
GraphicsSupports max. 4K resolutionIntel HD Graphics (By CPU)Intel HD Graphics (By CPU)
Default Waterproof I/O

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

2 × USB, 1× RJ45, 1× DC12V.

COM ports, HDMI Output, Audio, etc. optional

LAN1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet1 x 10/100/1000Mbps Ethernet
OSAndroid 6.0 (Android 7.0 optional)Windows 7/8/10, LinuxWindows 7/8/10, Linux

GENERAL

PowerInput VoltageDC 12V 2.0
Operation/Power Saving15~25W
Environment ConsiderationsOperating Temperature-10~60℃(-20~70℃ optional)
Storage Temperature-20~70℃
MountingVESA Mount, Panel/Embedded Mount optional
Order Information10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Tempered Glass: ITD101PPCG1IP*E2
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Android RK3288 Panel PC with Resistive Touch: ITD101PPCT1IP*E2
10.1” Stainless Steel/Aluminum Alloy l Full IP65/IP66 Android RK3288 Panel PC with PCAP Touch: ITD101PPCT5IP*E2
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with Tempered Glass: ITD101PPCG1IP*J2
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900Panel PC with Resistive Touch: ITD101PPCT1IP*J2
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel J1900 Panel PC with PCAP Touch: ITD101PPCT5IP*J2
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Tempered Glass: ITD101PPCG1IP*I3
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with Resistive Touch: ITD101PPCT1IP*I3
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i3 Panel PC with PCAP Touch: ITD101PPCT5IP*I3
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Tempered Glass: ITD101PPCG1IP*I5
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with Resistive Touch: ITD101PPCT1IP*I5
10.1” Stainless Steel/Aluminum Alloy Full IP65/IP66 Intel i5 Panel PC with PCAP Touch: ITD101PPCT5IP*I5





Product Display:

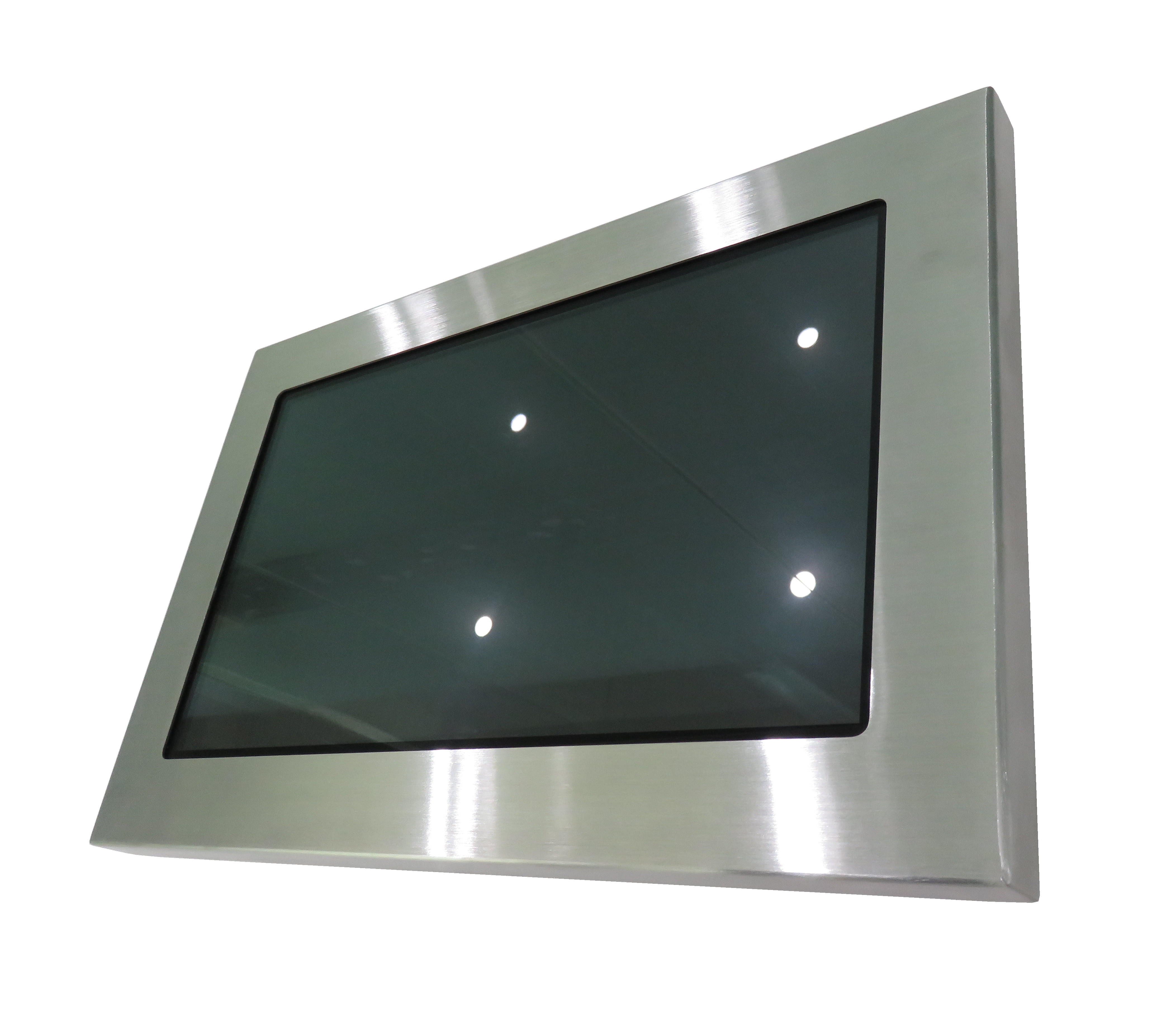

IP69K SUS316L All In One PC Dustproof Resistive PCAP Touch Panel PC

IP69K SUS316L All In One PC Dustproof Resistive PCAP Touch Panel PC




IP69K SUS316L All In One PC Dustproof Resistive PCAP Touch Panel PC




APPLICATION


IP69K SUS316L All In One PC Dustproof Resistive PCAP Touch Panel PC
