21.5" self-ordering kiosk advertising display all in one PC
1.1 Introduction
ITD self-ordering Kiosk is equipped with P-cap touch screen. You can freely add Peripherals you need, thanks to the modular design. Advanced industrial design also makes it one of the thinnest and robust kiosk on the market.
ITD self-ordering Kiosk has been widely applied in many occasions, including shopping malls, supermarkets, restaurants, car showrooms, brand monopoly, hotel halls, expositions, industrial parks, banks, government units, etc., Years of vigorous investment in research and development have made our products more competitive than their peers, both in technology and in practical applications.
1.2 Features
◆ 10-point capacitive touch, 1920*1080 resolution, 178 ° viewing angle
◆ Android / Windows optional
◆ Professional terminal scanning, fast identification, fast identification of various product barcodes, payment codes
◆ Zero error: millimeter-level 3D face recognition, the face recognition rate can reach 99.9%, zero errors in 10,000 detections;
◆ Versatility: Adopting front paper bin design, for unlocking and changing paper more efficiently; Match with 58mm Seiko printer core, to achieve automatic cutter and high-speed printing, without paper jam;
◆ Stability: Each device has undergone multiple tests including aging, temperature and humidity testing, static detection, vibration, high voltage, touch and click, display, etc. to ensure stable quality and support 7 * 24 hours of work
◆ 3Proofings:Aluminum alloy structure, wear-resistant and anti-corrosion, overall anti-riot, IP65 waterproof surface;
◆ Safety: Using special industrial-grade leakage protection switching power supply, which is more reliable in public places;
◆ Diversity: provide a variety of customized services (Appearance color, logo, peripherals adding, etc.);
◆ Supports floor-stand and wall-mounted dual-scenario applications, breaking space constraints.
◆ Integrated design, simple assembly, just plug in when power on, no need to install and debug on site
Specifications:
| Panel Specification: | |
| Size: | 21.5 inch |
| Maximum resolution: | 1920*1080 |
| Display color: | 16.7M |
| Pixel Pitch(mm): | 0.090x0.270 (HxV) |
| Brightness (nits): | 250-500 cd/m2 |
| Contrast: | 1400:01:00 |
| Visual angle: | 89°/89°/89°/89°
|
| Response: | 6ms |
| Touch screen: | 10-point capacitive touch |
| Main board: | Andriod |
| CPU: | RK3399/3288/Intel J1900,i3,i5,i7 |
| RAM: | 2G |
| HDD: | 16G |
| Graphics: | CPU integrated |
| Panel life: | about 50000hours |
| Operating System: | andriod7.1 |
| Physical Specification: | |
| Surface: | anti-scratched tempered glass |
| Color: | Black/White/customized colors |
| Audio/Speakers: | 8Ω,5W,2000 revolutions per minute |
| Ports/Slots: | Power input| Power switch| USB | LAN |
| Power supply: | AC 110–240, 50-60Hz |
| Operating temperature: | 0 ~ 50 °C |
| Humidity: | 0% ~ 80% |
| Camera: | YES |
| Printers: | ticket printers |
| Card Devices: | RFID reader |
| Scanners: | QR code / Barcode scanner |
| More product | Video Wall Screen,Self-Order Kiosk,Touch Screen Kiosk
,LCD Digital Signage,Stretched Bar Lcd display,
Interactive Whiteboard |
Product Image
|
|

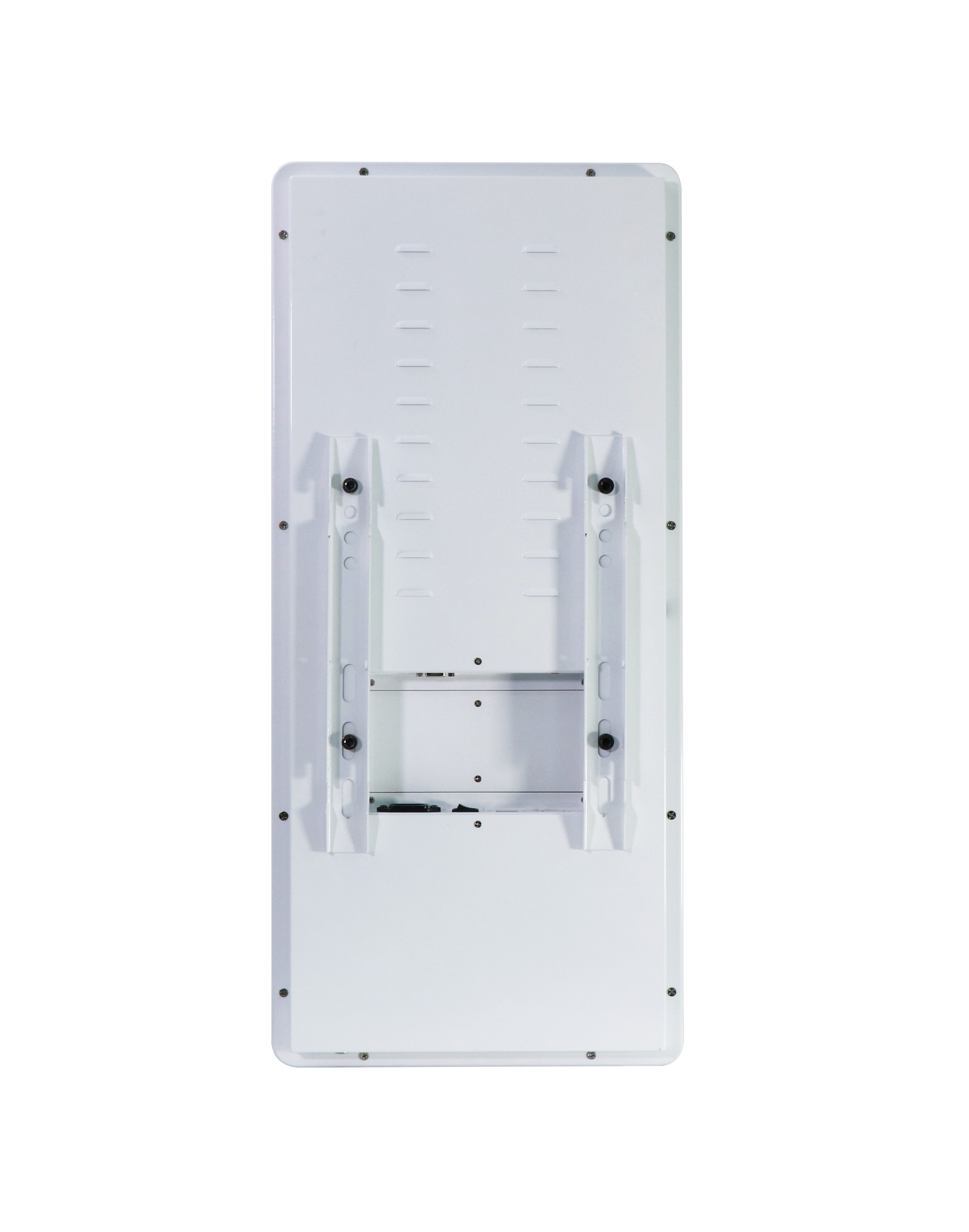

21.5" All In One Touch Self Service Payment Ordering Kiosk Automatic Ordering terminal Touch Screen kiosk Images
|
