PCAP 1280x800 Rugged Touch Screen Pc MIL-STD-810G With Barcode Scanner

Name: PCAP 1280x800 Rugged Touch Screen Pc MILSTD810G With Barcode Scanner
Brand: ITD/OEM
Price: 1 USD

Buy cheap PCAP 1280x800 Rugged Touch Screen Pc MIL-STD-810G With Barcode Scanner product

Brand Name : ITD/OEM

Model Number : ITD101PPCT5RZ1

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 15-20 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Native resolution : 1280x800 1920*1200 optional

Brightness : 450nits, sunlight readable optional

Processor : Intel Cherry-Trail Z8350 Quad Core

touch panel : PCAP touch

Pepherials integrated : NFC reader, fingerprint, barcode scanner

I/O : SIM Card Slot x1(If 4G module added) Micro USB x1; USB2.0 Host x1 Micro HDMI-I Output x1 ∮3.5mm standard earphone jack x1 DC Input x1 power key x1 Volume + - x2 optional

Operating Temperature : -20~60℃

Storage Temperature : -20~70℃

Material : rugged aluminum casing

Warranty : 2 years

MTBF : 50000hours

Contact Now

rugged touch screen pc MIL-STD-810G IP68 2D/1D with barcode scanner

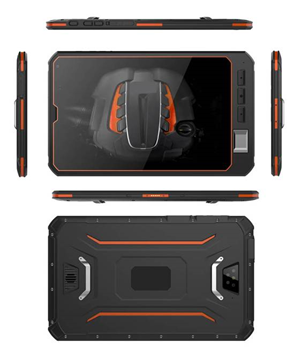

Product Picture
Product Outlook
Type	Details	Standard Configuration
Product Form	Type	Rugged Tablet
	Dimension	27517513.5mm
	Net Weight	865g
	Device Color	Black
LCD	Screen Size	10.1inch 16:10
	Resolution	1280 x 800 IPS
	Brightness	350 Nits
TP	Touch Panel	5points Capacitive,G+G,Hardness: 7H-Anti-Scratch, Support Handwriting
Camera	Front	Front: 2MP
Camera	Rear	Rear: 5MP
Speaker	Built-in	Embedded 8Ω/0.8W BOX Waterproof Speaker x 1
Mic	Built-in	Sensitivity:-42db, Output Resistance2.2kΩ
Battery	Type	Build in Lithium-ion Polymer Battery
	Capacity	3.7V/10000mAh
	Endurance	8hrs(default 50% volume,default 50% brightness, play 1080P FHD video)
System Hardware Configuration
Type	Details	Description
CPU	Type	Intel Cherry-Trail Z8350 Quad Core
CPU	Speed	1.44-1.92 GHz
RAM	DDR3L	2GB (4GB optional)
ROM	EMMC	32GB (64G optional)
Network Connections
Type	Details	Descriptions
WIFI	WIFI Module	WIFI 802.11(a/b/g/n) Frequency 2.4G+5G Dual Band
Bluetooth	Built-in	BT4.0
4G	Built-in	Support GSM:B5/B8/B3/B2=850/900/1800/1900Mhz,3G WCDMA: B1/B8=2100/900MHz; 4G FDD LTE: B1/B3/B7/B20=2100/1800/2600/800MHZ(Optional)
GPS	Built-in	Support GPS+ Beidou or GPS+Glonass (Optional)
Interface Configuration
Type	Details	Descriptions
TF Slot	Extensive External Memory	Support SDHC/SDXC x1
SIM Slot	SIM Card	SIM Card Slot x1
USB Interface	Data Transmission & Power Charging	Micro USB OTG x1
Video Output	HDMI-I	HDMI-I Output x1
Earphone Jack	Audio Output	∮3.5mm standard earphone jack x1
Pogo-pin	Pogo-pin Port	Pogo-pin Port x1(Keyboard Supported)
Power On	Press Key	power key x1
Volume + -	Press Key	Volume + - x2 optional
Standard Accessories
Type	Details	Description
USB Cable	USB Cable	USB to Micro USB 5P L=1.2M, USB OTG Cabale
Power Charger	Charger	Power Charging
Software Configuration
Type	Details	Description
Operation System	OS Version	Windows 10 Home (optional)
Operation System	OS Version	Windows 10 Home (optional)
Ruggedness Level
Type	Details	Description
Compliance	IP68	Method Name:short time submerging test Test Device and Test Condition:submerge water box.the size should make the testing sample into submerge box and after then, the distance from sample bottom to water surface at least 1m. and distance from sample top side to water surface at least 0.15m. Testing Time: 30 min MIL-STD-810G Compliance
Compliance	Battery	UN38.3,MSDS,IEC62133
Reliability
Type	Details	Descriptions
Product Reliability	Drop Height	1.0m composite wood floors, in operation status
	Operate Temperature	-20 °C to 60 °C
	Store Temperature	-30 °C to 70 °C
	Humidity	Humidity: 5%-95% Non-Condensing
Options
Type	Details	Descriptions
NFC	NFC	13.56MHz
Finger Reader	Finger Reader	508dpi
Barcode Scanner	Barcode Scanner	2D/1D Barcode Scanner
