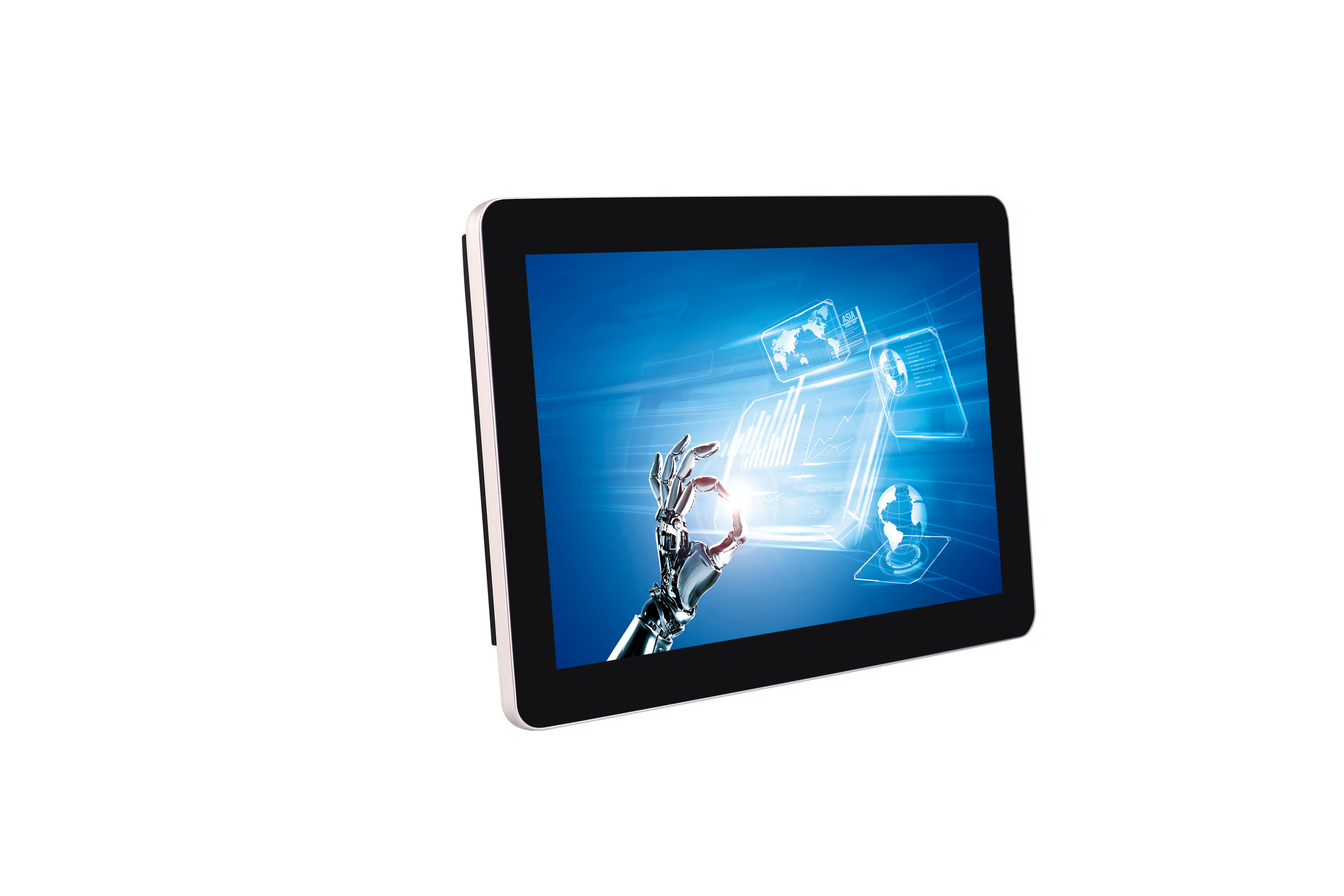

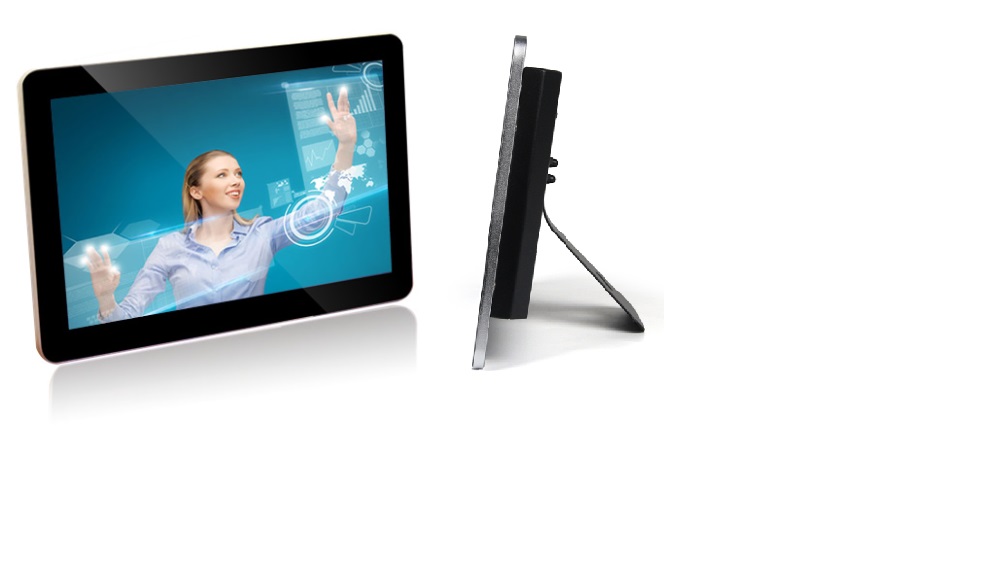

AIO VESA Mount Linux PoE RFID Panel PC 350nits For Access Control

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD101PPCT5Kxx

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Native resolution : 1920x1200, 1280x800

Brightness : 350nits

Processor : RK3288, RK3399, Intel J1900, Intel i3/i5/i7

touch panel : capacitive/resistive

Mounting method : VESA

I/O : USB, COM, HDMI, Audio, LAN

Operating Temperature : -10~60℃

Storage Temperature : -20~70℃

Material : Steel Housing, aluminum frame

Warranty : 2 years

MTBF : 50000hours

Contact Now

10 panel pc AIO VESA mount Linux PoE RFID optional for access control



PARAMETERS

Panel Cell Type/Glass Surface TFT
Size 10.1”
Aspect Ratio 16:10
Active Area 216.81(W) × 135.50(H)mm
Pixel Pitch 0.113 × 0.113mm
Native Resolution 1280 x 800
Colors 16.7M
Brightness 300cd/㎡
Contrast 800:1
Response Time 14ms
Viewing Angle(Typical) 160/160
Light Source LED

SPECIFICATION

System CPU Intel® Celeron J1900 2.0GHz Processor
BIOS AMI
Chipset Intel Bay Trail SoC
Memory

Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB
Graphic Chipset CPU integrated graphics HD and support 1080p
Storage 1 x SATA, 1 x mSATA, Default to 64GB SSD
LAN 1 x 10/100/1000Mbps Ethernet
Input / Output Serial Ports 1 x COM
USB Ports 4 X USB
VGA Port 1 x VGA
HDMI Port 1x HDMI Port
Audio Card

with Realtek ALC662

Line-Out/MIC IN
Power Input Voltage DC 12V
Operation/Power Saving 20W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
Order Information 10.1” 1280 x800 Zero-Bezel Panel PC with PCAP Touch J1900/ITD101PPCT5KJ2
10.1” 1280 x800 Zero-Bezel Panel PC with Tempered GlassJ1900/ITD101PPCG1KJ2



AIO VESA Mount Linux PoE RFID Panel PC 350nits For Access ControlAIO VESA Mount Linux PoE RFID Panel PC 350nits For Access Control
