Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake

Name: Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake
Brand: ITD/OEM
Price: 1 USD

Buy cheap Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake product

Brand Name : ITD/OEM

Model Number : ITD-MNPC-8265U-8632

Certification : CE/ROHS/FCC

Place of Origin : China

MOQ : 1PCS

Payment Terms : T/T, Western Union,Paypal

Supply Ability : 10000 units per month

Packaging Details : Foam,gift box,wooden case,pallet

Mounting : Side mounting brackets

Optional Processor : Intel Core i5-8265u Whiskey Lake

Operating temperature : -20 to 60 C

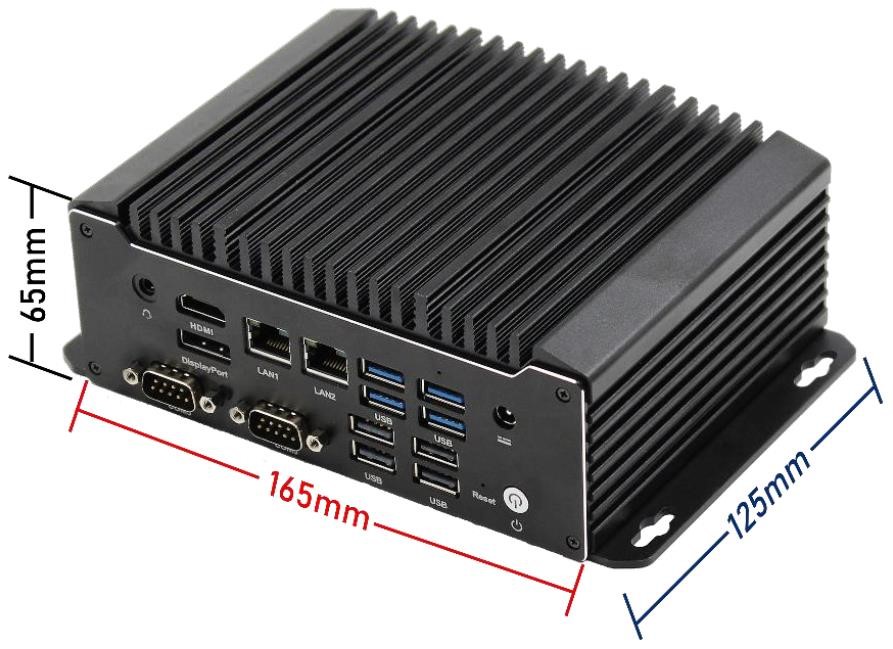

dimension : 165*125*65mm

LAN : 2 x 10/100/1000Mbps Ethernet Dual LAN

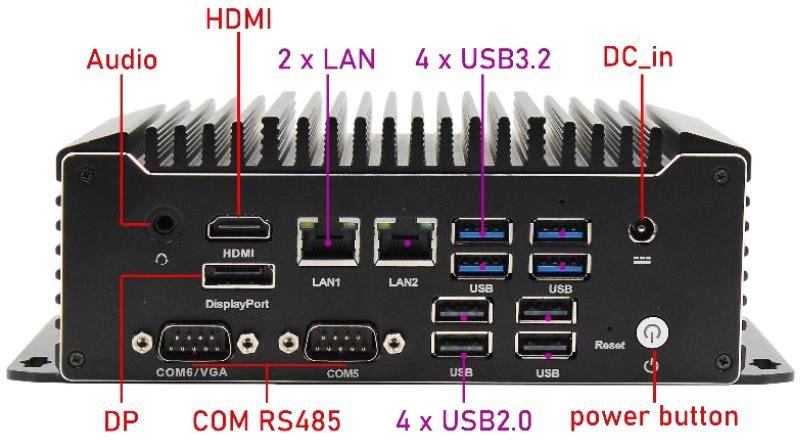

I/O : 1 x SATA3.0 1 x HDMI1.4 1 x DP1.2 1 x LINE OUT & MIC IN in one 4 x USB3.2 Gen1 4 x USB2.0 4 x RS232；2 x RS485

Power Supply : Support DC 12V /19V

MTBF : 50000H

OS Support : Windows 11/10 Windows 8, Windows 7, Linux Ubuntu

Warranty : 2 years

Price : TBA

Contact Now

Fanless industrial mini box PC computer Windows 11 Intel i5 8265u Whiskey Lake

Features of fanless industrial pc:

Embedded, Wall mounted and Desktop Installation
Intel Apollo Lake Celeron Processor
DDR3L SO-DIMM up to 8GB
HDMI, DP, SATA3.0, M.2
Intel i5-8265u Whiskey Lake 3.9GHz
Support Wi-Fi and 4G
Low power design without fan,12V/19V DC_in
Windows 11 Supported

Specifications of fanless box PC:

CPU

Intel Celeron 4205U

1.80 GHz

Intel Core I3-8145U

2.10 GHz

Intel Core I5-8265U

1.60 GHz

Base frequency

Burst frequency

Cache

Processor

3.90 GHz

2 MB Smart Cache

4MB Smart Cache

15W

4MB Smart Cache

15W

TDP

15W

Type

2 x DDR4 SO-DIMM 2133MHz

64GB

RAM

Graphic

Capacity

Graphics

Interface

Ethernet

Connector

M.2

Intel UHD Graphics for 8th Generation Intel Processors (based on CPU)

10/100/1000 Mbps

Ethernet

Storage

Intel Ethernet Controller I211-AT & I219-LM

2 x RJ45

1 x M.2 Key_B for 2242 SSD or NGFF 3G/4G

1 x SATA3.0

SATA3.0

HDMI

1 x HDMI1.4

1 x DP1.2

Audio

1 x LINE OUT & MIC IN in one

4 x USB3.2 Gen1

Rear I/O

USB3.2 Gen1

USB2.0

4 x USB2.0

COM

4 x RS232；2 x RS485

1 x M.2 Key_E for 2230 Wi-Fi

1 x Micro SIM

M.2

Expansion

Power Input

Micro SIM

Connector

Power Type

Size (W x H x D)

Weight

DC 12V/19V Jack; DC9~36V input with Phoenix Connector optional

Single 12V/19V DC power input

165mm x 65mm x 125mm

0.8KG

Dimensions

Weight

Operating Temp

Storage Temp

Operating System

0℃~70℃

Environment

-40℃~80℃

Windows 7 32/64 bit Windows 10 32/64 bit,Linux, Windows 11 for 8^th Gen.

Ordering Information

Model Number

Display

COM

GPIO

DC_IN

ITD-MNPC-xxxx-8632

HDMI+DP

4 RS232 & 2 RS485

4 RS232 & 1 RS485

12V/19V

16V~30V

12V/19V

HDMI+DP

8 bit GPIO

HDMI+DP+VGA

8 bit GPIO

16V~30V

Displays of industrial box PC:

Side Mounting Mini Box PC Fanless Industrial Computer Windows 11 I5 8265u Whiskey Lake
