32" PCAP Flat Panel Touch Android industrial touch panel PC RK3368 built-in WIFI camera bluetooth smart card reader NFC
FEATURES
▪ Easy-to-clean, true flat front surface without bezel
▪ Card Reader like NFC, RFID, etc integrated
▪ Ten independent touch points with anti-vandalism & scratch
▪ Responds to a light touch to activate response
▪ Eliminates dust and debris build-up at the edge and corners of the display
▪ Provides improved power efficiency and reduced consumption
▪ Ruggedized levels of NEMA 4, IP65 ratings for front panel
▪All steel and aluminum frame construction designed for public and industrial environments
▪ CE, FCC, RoHS Compliance
PARAMETERS
| Panel | Cell Type/Glass Surface | TFT |
| Size | 32” |
| Aspect Ratio | 16:9 |
| Active Area | 698.7(H) x 393.3(V) |
| Pixel Pitch | 0.3638 × 0.3638mm |
| Native Resolution | 1920 x 1080 |
| Colors | 16.7M |
| Brightness | 400nits |
| Contrast | 1200:1 |
| Response Time | 5ms |
| Viewing Angle(Typical) | 178(H)/178(V) |
| Light Source | LED Backlight with 50000Hours’Lifetime |
SPECIFICATION
| System | CPU: ARM Quad-Core RK3368 Cortex-A53,Main CPU frequency:1.5GHz; GPU: PowerVR G6110 GPU SDRAM: 2G; 4G Optional Flash: 8G: 16G/32G/64G/128G Optional OS: Android 5.1/6.0 Bluetooth: Optional Video Decoder: 4K VP9/H265/H264 video decoders, up to 60fps 1080P other video decoders (VC-1, MPEG-1/2/4, VP8) Media Format: Supports RMVB,FLV,MPEG1/2/4,AVI,WMV,MOV,MP4,TS,etc Music Format: Support MP3/AAC/WAV/WMA/Dolby True HD/DTS-HD/LPCM /H264/VP8/MVC Photo Format: Supports JPG/BMP/GIF/TIFF/PNG |
| Input / Output | 1 × HDMI; 2 × USB Max. 6× USB; 1 × USB OTG 4 × COM; 1 × TF Card Support 8~128GB; 1 × RJ45 LAN Ethernet 10/100/1000M (Realtek RTL8211E); 1 × AC 110-240V; 3G/4G Optional |
| Operating Temperature | -10~60℃ |
| Storage Temperature | -20~70℃ |
| Operating Humidity | 10%~90% (Non Condensing) |
| Order Information | 32” PCAP Touch Android PC with NFC Reader/ITD32PPCT5KE1-NFC |
| 32” PCAP Touch Android PC with RFID Reader/ITD32PPCT5KE1-RFID |
| 32” Non Touch Android PC with NFC Reader/ITD32PPCG1KE1-NFC |
| 32” Non Touch Android PC with RFID Reader/ITD32PPCG1KE1-RFID |
DRAWING

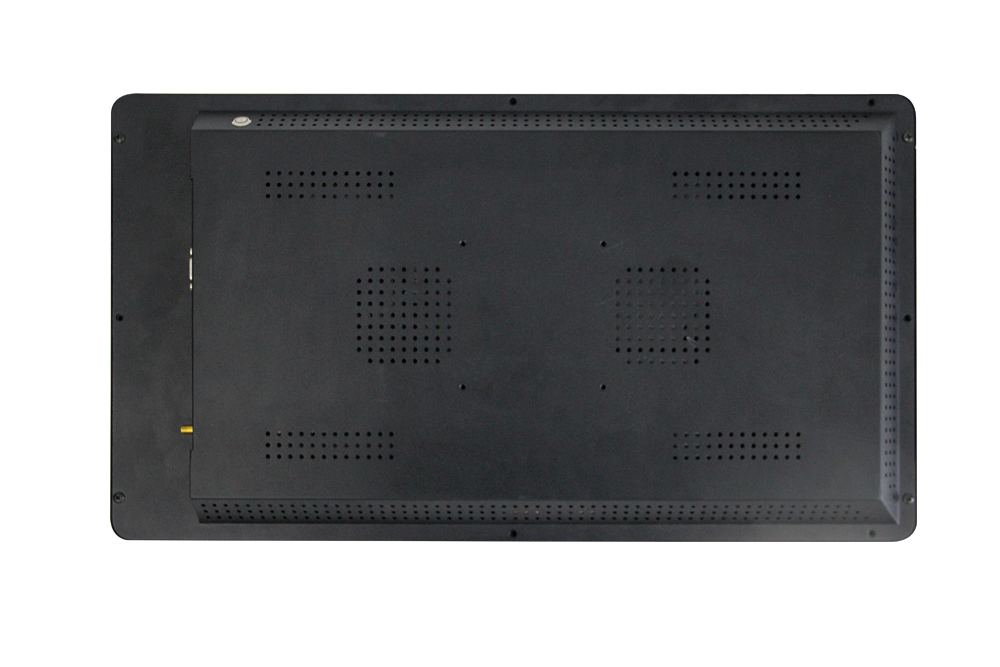

Product image:
