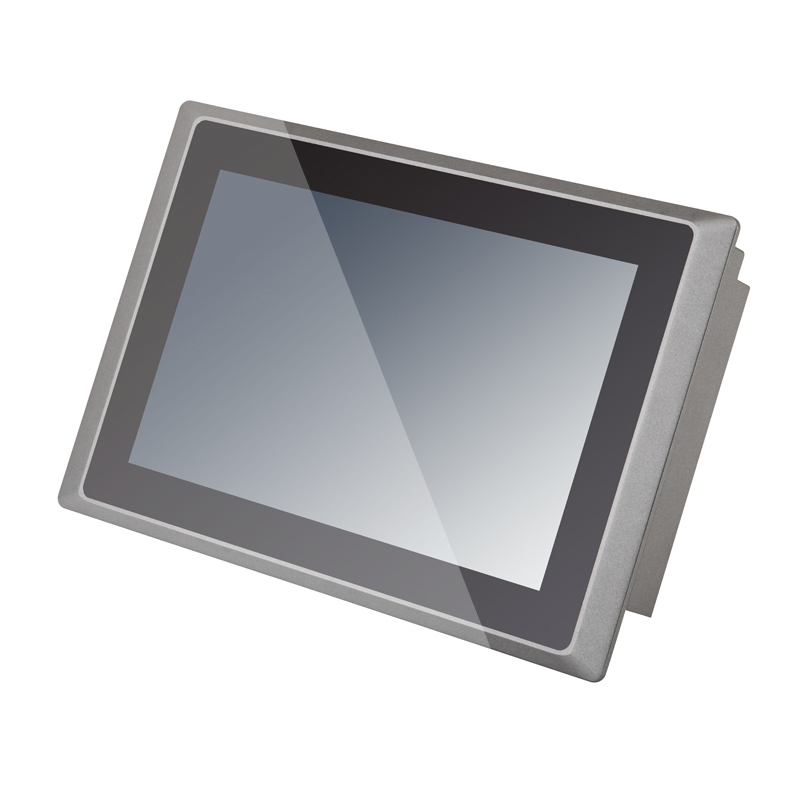

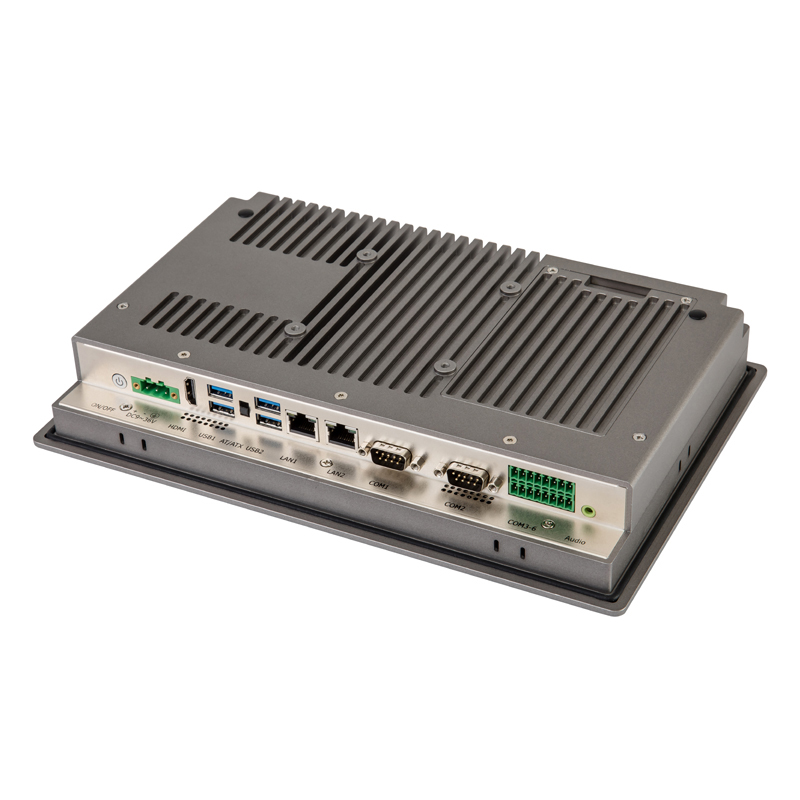

10.1 Inch 1000nits 1280x800 Windows Panel Pc AIO VESA

  • 1
  • 2

Brand Name : ITD/OEM

Model Number : ITD101PPCTxB-xxxx

Certification : CE, FCC, RoHS

Place of Origin : China

MOQ : 1PCS

Price : TBA

Payment Terms : T/T, Western Union, Paypal

Supply Ability : 10000PCS/Month

Delivery Time : 7-10 Business Days

Packaging Details : 1-5pcs/CTN, Safe, Firm, suitable for international shipping

Native resolution : 1280x800

Brightness : 300 ,1000nits optional

Processor : Intel J1900, Intel i3/i5/i7

touch panel : capacitive/resistive

Mounting method : panel mounted,VESA

OS : Windows 7/8/10, Linux

Operating Temperature : -20~60℃

Storage Temperature : -20~70℃

Material : Aluminum Housing

Warranty : 2 years

Contact Now

windows pc panel touch screen 10.1 inch AIO for factory automation



Features

  • Onboard Intel® Celeron® J1900/CoreTM i5-4200U/i7-4500U CPU
  • Onboard DDR3 4GB Memory / Optional SODIMM SKU
  • LCD+HDMI Output, Support Dual view/Simultaneous display
  • Fanless Operation
  • IP65 Front Bezel
  • Wide DC Support 9 ~ 36V

10.1 Inch 1000nits 1280x800 Windows Panel Pc AIO VESA10.1 Inch 1000nits 1280x800 Windows Panel Pc AIO VESA10.1 Inch 1000nits 1280x800 Windows Panel Pc AIO VESA



OPTIONALS

• DC 24V, DC9-36V, AC100-240V • Optical bonding
• Resistive touch screen, tempered glass • WIFI, 3G, 4G
• Web camera, speakers, RFID, NFC, Fingerprint, QR reader, Thermal printer, GPS etc.

DISPLAY

Panel Cell Type/Glass Surface TFT
Size/ Aspect Ratio 10.1”/16:10
Active Area/ Pixel Pitch 216.96(H) ×135.6(V)mm/0.1695 × 0.1695mm
Native Resolution/ Colors 1280 x 800/16.7M
Brightness/ Contrast 1000cd/㎡/800:1
Response Time/ Viewing Angle(Typical) 25ms/85/85/85/85
Light Source LED Backlight with 50000Hours’Lifetime

SYSTEM

Item Android Solution X86 Solution 1 X86 Solution 2
CPU ARM Quad Core Cortex-A17, 1.8GHz (RK3399 optional) Intel® Celeron J1900 2.0GHz Intel® Core i3/i5/i7
Chipset RK3288 Intel Bay Trail SoC Intel SoC Chipset
Memory

2GB; 4GB Optional



Dual Channel, DDR3 1333/1600MHz Memory,

Max.8GB

 2 x DDR3 1333/1600MHz SO-DIMM Slot, Max. 16GB
Storage

8GB: 16GB/32GB/64GB Optional



 1 x SATA, 1 x mSATA, Default to 64GB SSD 1 x SATA, 1 x mSATA, Default to 64GB SSD
Graphics Supports max. 4K resolution Intel HD Graphics (By CPU) Intel HD Graphics (By CPU)
I/O 1 × HDMI; 2 × USB Max. 4× USB; 1 × USB OTG(Optional); 2 × COM; 1 × TF Card Slot Support 8~128GB

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; COM port(optional); 1 x Realtek ALC662

Line-Out /MIC IN

1 x VGA Output; 1 x HDMI Output; 2 x USB 3.0; 2 x USB 2.0 max. 6; 2 x COM max. 6; 1 x Realtek ALC662

Line-Out /MIC IN
LAN 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet 1 x 10/100/1000Mbps Ethernet
OS Android 6.0 (Android 7.0 optional) Windows 7/8/10, Linux Windows 7/8/10, Linux

GENERAL

Power Input Voltage DC 12V 2.0
Operation/Power Saving 15~37W
Environment Considerations Operating Temperature -10~60℃
Storage Temperature -20~70℃
Relative Humidity 10%~90%
